CLD

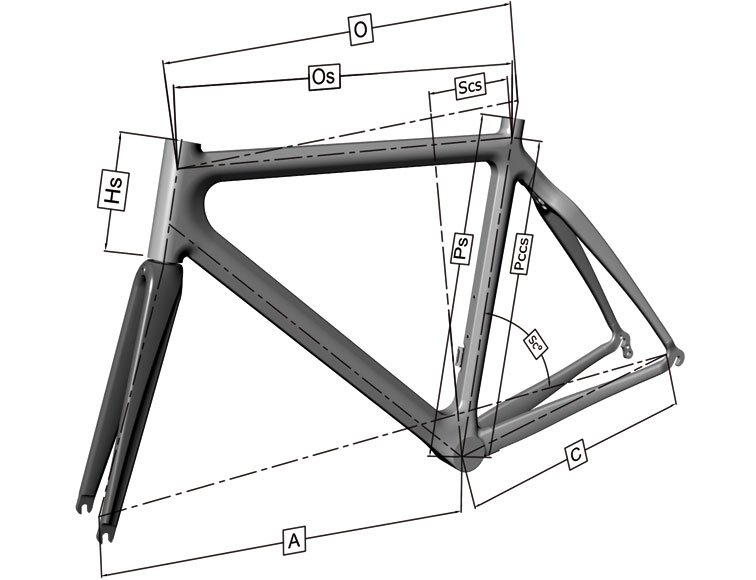

| Size | Size | Sc° | Seat angle |
| Pccs | Seat tube length (centre to centre) | Scs | Seat cluster offset |
| Ps | Seat tube length (centre to top) | C | Chainstay length |
| P | Effective seat tube length | A | Front centre |
| Os | Top tube length | Hs | Tube length |
| O | Top tube length (horizontal) |
| Size | Ps | Os | Pccs | Scs | Sc° | A | C | Hs | As° | bbdrop | O |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40s | 400 | 488 | 378 | 95 | 75.44° | 575 | 397 | 125 | 70.57° | 65 | 500 |
| 43s | 430 | 498 | 408 | 103 | 75.38° | 579 | 399 | 130 | 71.16° | 68 | 510 |
| 46s | 460 | 508 | 435 | 113 | 74.94° | 581 | 400 | 135 | 71.56° | 69 | 520 |
| 49s | 490 | 519 | 465 | 124 | 74.53° | 586 | 402 | 145 | 71.63° | 69 | 530 |
